Base Profile: https://www.hl7.org/fhir/documentreference.html

There are several different Document categories and types inside of EMA. Most “documents” can be handled through the ‘DocumentReference’ resource.

Attachments

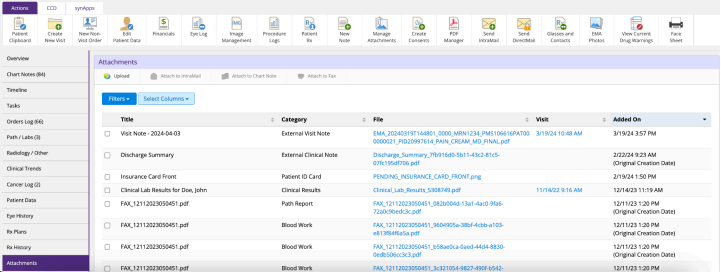

Each Patient chart has a section called ‘Attachments’

Each document has the ability to have a title, category, file name, visit associated (if relevant), and date. The document categories in this section are defined by the customer. Each customer will have different document categories and therefore different IDs for these categories. Each customer’s document categories can be found by querying their ValueSet.

Visit Notes

The Visit Note is another document type you can find in EMA. These are the nicely designed PDFs of each patient encounter in EMA. You can find ALL of a Patient’s visit notes, by calling: /DocumentReference?patient={patientID}&category=note.
If you are looking for the Visit Note of a specific Encounter, you can /DocumentReference/note|{visitID}. You can find Encounters by searching the /Encounter endpoint.

CCDA

You can also query for a Patient’s CCDA. /DocumentReference?patient={patientID}&category=CCDA. This will be an XML document.

Results

In order to POST a document into a customer’s Results Log, you would need to query their ValueSet for document-category and find the ‘Results -*’ categories. Each customer will have Results categories - depending on the type of results they work with - for example:

{
  "code": "1567",
  "display": "Results - Lab"
},
{
  "code": "31755",
  "display": "Results - Path/Lab"
},
{
  "code": "1694",
  "display": "Results - Pathology"
},
{
  "code": "2075",
  "display": "Results - Procedures"
},
{
  "code": "5184",
  "display": "Results - PT/OT"
},
{
  "code": "1821",
  "display": "Results - Radiology"
},

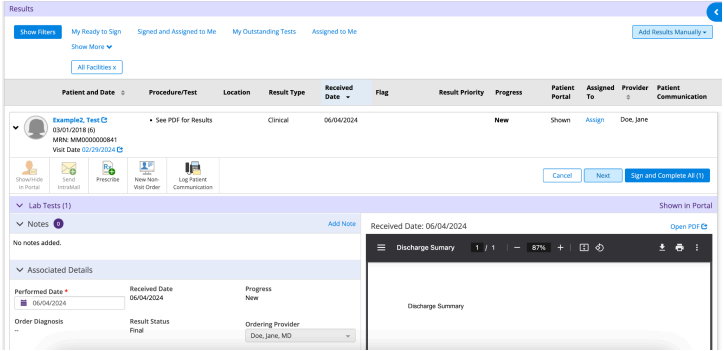

The end experience will be an entry into the customer’s Results Log:

The results log allows for a more Results-centric workflow which allows the end user to review, sign, and/or create plans or follow-up actions.

DocumentReference

The DocumentReference resource can be used to retrieve or create documents located in the "Attachments" section of a patient's chart in EMA. This documentation specifically pertains to the "Attachments" section.

For details on how to retrieve a patient's CCDA or Visit Note, please refer to the DocumentReference CCDA and Visit Notes documentation in the following section.

If you're looking to POST a Patient Reported Outcome (PRO) document to EMA’s PRO module, please consult the PRO portion of the DocumentReference CREATE section below.

Common use cases include:

Add Documents to a Patient’s chart
Find Documents for a Patient
Find a specific Visit Note
Retrieve a Patient’s CCDA

The following attributes are supported:

Field Name	Notes
id	The MMI-specific unique identifier for the Document
identifier	filename
status	current \| superseded \| entered-in-error NOTE: MMI currently only supports ‘current’
type	the type of file application/pdf audio/mpeg
category	ValueSet: document-category {base url}/{firm_url_prefix}/ema/fhir/v2/ValueSet/document-category
subject	reference - Patient
date	When this document reference was created
description	The title of the document
content	The document itself
context	Reference to Encounter

The Following Operations are supported:

DocumentReference READ
DocumentReference SEARCH
DocumentReference CREATE

DocumentReference CCDA and Visit Notes

Additionally, we’ve added functionality to be able to retrieve:

A Patient’s CCDA Document (an XML document)
A Patient’s Visit Note - the PDF version of a visit note for a specific encounter

CCDA

In order to search for a patient’s CCDA:

HTTP Request

Method

Action

{baseurl}/{firm_url_prefix}/ema/fhir/v2/DocumentReference?patient=(PatientID}&category=ccda

GET

Search for a Patient’s CCDA

Alternatively, the LOINC for CCDA (81214-9) can be passed instead of ‘ccda’

{baseurl}/{firm_url_prefix}/ema/fhir/v2/DocumentReference/ccda|{patientID}

GET

Retrieve a Patient’s CCDA

Alternatively, the LOINC for CCDA (81214-9) can be passed instead of ‘ccda’

Visit Note

In order to search for a patient’s Visit Note(s):

HTTP Request

Method

Action

{baseurl}/{firm_url_prefix}/ema/fhir/v2/DocumentReference?patient={PatientID}&category=note

GET

Search for a Patient’s Visit Note

Alternatively, the LOINC for Summary of episode note (34133-9) can be passed instead of ‘note’

{baseurl}/{firm_url_prefix}/ema/fhir/v2/DocumentReference/note|{visitID}

GET

Retrieve a Patient’s Visit Note

Alternatively, the LOINC for Summary of episode note (34133-9) can be passed instead of ‘note’

DocumentReference CREATE

Step

HTTP Request

Method

Action

1

{base url}/{firm_url_prefix}/ema/fhir/v2/Binary

POST

Retrieve S3 Bucket URL

2

{base_s3_url}/{auto-generated string}

*NOTE**:‘base_s3_url’ refers to the URL you will get back from making the Binary POST. There will be different URL structures depending on whether you are POSTing to Development or Production environments. As an example, here is an example of the current development URL:

https://modmed-prod-incoming-fhir-attachments.s3.amazonaws.com/{auto-generated_string}

PUT

Upload the document to the S3 URL

*Note**: If using Postman, or a similar solution, check your hidden headers as it may automatically add a Content-Type which may cause the upload to fail. Content-Type will need to equal “text/plain”

3

{base url}/{firm_url_prefix}/ema/fhir/v2/DocumentReference

POST

Upload document from S3 URL to EMA

The attributes for creating a document are:

Name	Type	Description
identifier*	filename	The name of the file
content*	S3 URL returned via POST against the Binary resource in step 1	The actual contents of the document
subject	patient reference	Use this to associate the document to the correct patient. it is not required. Any document posted without a patient will go into an unassociated queue where someone at the practice will need to manually associate the document to a patient.
title	string	The title of the file - not required, but there is a title column in the UI. This could be used to give a little more information than what is in the name of the file.
creation	datetime	When passed in, this will set the ‘Original Creation Date’ in EMA so that when a user is searching for attachments in a patient’s chart, the user will see this date as the date rather than the date the document was uploaded into EMA.

Step 1: We’ve added the ‘Binary’ resource as a mechanism to retrieve an S3 URL for your customer’s site. You will need to create a POST to this Endpoint in order to retrieve the URL. The POST can simply be blank, however, here is a sample of a payload if you want to use something like this:

POST {base url}/{firm_url_prefix}/ema/fhir/v2/Binary

{
  "resourceType" : "Binary",
  "contentType" : "application/pdf",
  "securityContext" : null,
  "data" : null
}

Note: The generated S3 URL will expire after 5 minutes. You will then need to POST the Binary Resource for a new S3 URL

Step 2: PUT Document to S3 URL. This will require you to place the document into the S3 bucket. This can be done a variety of ways - one example:

curl --location --request PUT '{base_s3_url}/{auto-generated string}' \
--header 'Content-Type: text/plain' \
--data-binary '@/Users/folder/Downloads/test.pdf'

Note: If using Postman, or a similar solution, check your hidden headers as it may automatically add a Content-Type which may cause the upload to fail. Content-Type will need to equal “text/plain”

Step 3: POST New Document with Patient ID

{
  "fullUrl": "{base url}/{firm_url_prefix}/ema/fhir/v2/DocumentReference?patient=7132",
  "resourceType": "DocumentReference",
  "identifier": [
    {
      "system": "filename",
      "value": "mikes-file.pdf"
    }
  ],
  "status": "current",
  "type": {
    "text": "application/pdf"
  },
  "category": [
    {
      "coding": [
        {
          "system": "{base url}/{firm_url_prefix}/ema/fhir/v2/ValueSet/document-category",
          "code": "426",
          "display": "External Visit Note"
        }
      ],
      "text": "External Visit Note"
    }
  ],
  "subject": {
    "reference": "{base url}/{firm_url_prefix}/Patient/7132",
    "display": "{base url}/{firm_url_prefix}/ema/fhir/v2/Patient/7132"
  },
  "date": "2019-04-03T21:11:38.000+00:00",
  "content": [
    {
      "attachment": {
        "title": "Mike's PDF",
        "contentType": "application/pdf",
        "url": "{base_s3_url}/{auto-generated string}/{auto-generated string}",
        "size": 383176,
        "creation": "2019-04-03T21:11:38+00:00"
      }
    }
  ]
}

Patient Reported Outcomes (PROS)

In addition to being able to create attachments in the patient’s chart, we’ve also enabled the ability to post documents into the EMA PRO module. In order to do this, you must send the category as defined in the payload below:

{
  "resourceType": "DocumentReference",
  "identifier": [
    {
      "system": "filename",
      "value": "PRO-sample.pdf"
    }
  ],
  "status": "current",
  "type": {
    "text": "application/pdf"
  },
  "category": [
    {
      "coding": [
        {
          "system": "{base url}/{firm_url_prefix}/ema/fhir/v2/ValueSet/document-type",
          "code": "PROS",
          "display": "Patient Reported Outcomes"
        }
      ],
      "text": "Patient Reported Outcomes"
    }
  ],
  "subject": {
    "reference": "{base url}/{firm_url_prefix}/ema/fhir/v2/Patient/6353",
    "display": "{base url}/{firm_url_prefix}/ema/fhir/v2/Patient/6353"
  },
  "date": "2021-03-10T18:04:09+00:00",
  "description": "PRO-sample",
  "content": [
    {
      "attachment": {
        "url": "{base_s3_url}/{auto-generated string}/{auto-generated string}",
        "size": 26654,
        "title": "PRO-sample",
        "creation": "2021-03-10T18:04:09+00:00"
      }
    }
  ],
  "context": {
    "encounter": [
      {
        "reference": "{base url}/{firm_url_prefix}/ema/fhir/v2/Encounter/266237",
        "display": "{base url}/{firm_url_prefix}/ema/fhir/v2/Encounter/266237"
      }
    ],
    "related": [
      {
        "reference": "{base url}/{firm_url_prefix}/ema/fhir/v2/Practitioner/1178",
        "display": "{base url}/{firm_url_prefix}/ema/fhir/v2/Practitioner/1178"
      }
    ]
  }
}
